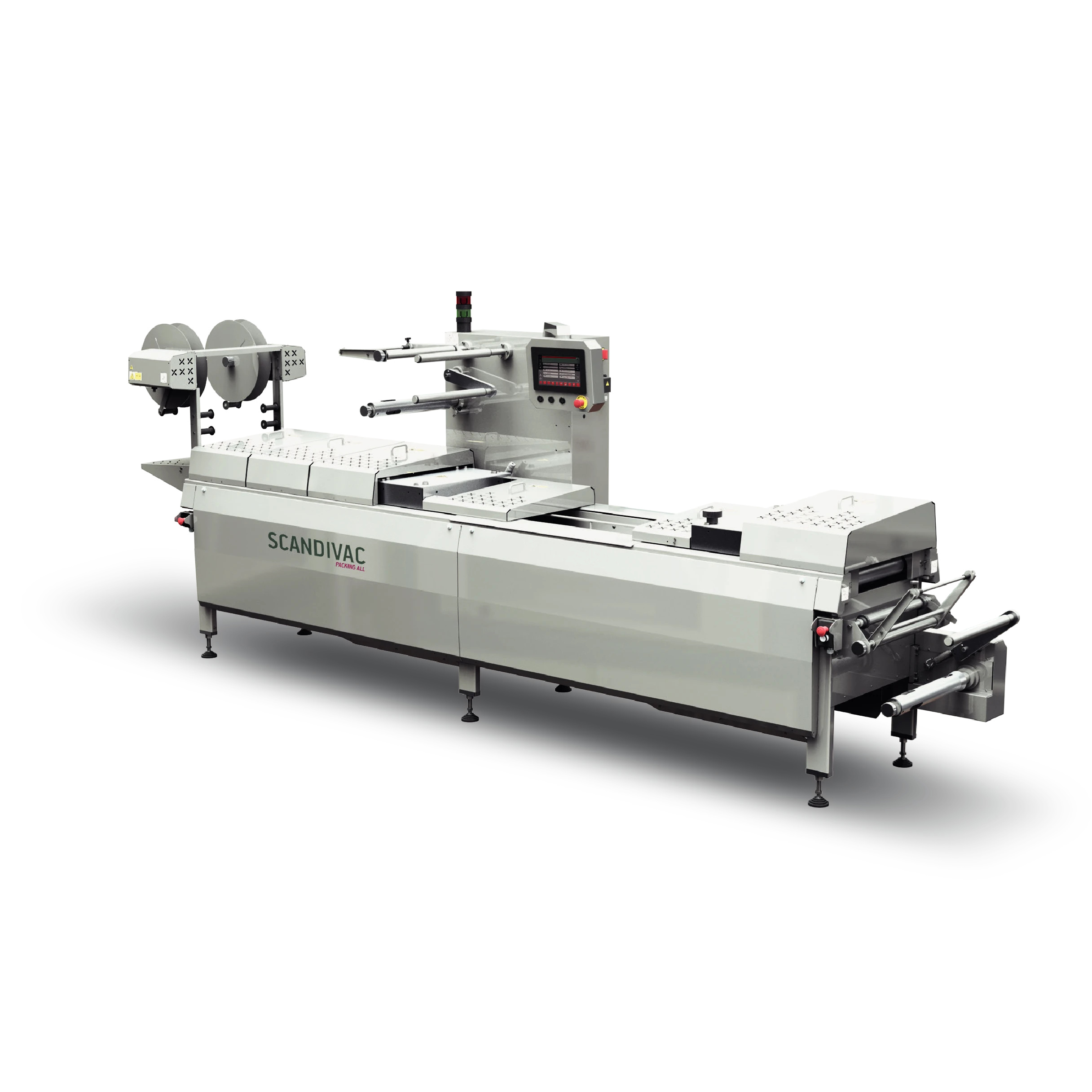

Scandivac SC190
Versatile thermoforming machine for small to medium-sized businesses looking to increase their packaging capacity with a compact yet powerful production line.
Suitable for professional packaging with sealing, vacuum, and MAP; available techniques and options depend on the chosen configuration. Please contact us for advice and a custom quote.
Description
| Capacity | up to 12 cycles/min. |
|---|---|
| Machine dimensions | 4,000–12,000 × max. 1,220 × 1,875 (±50) mm |
| Frame length | 3,300–10,000 mm |
| Film width | max. 520 mm |
| Stroke length | max. 400 mm |
| Forming depth | max. 120 mm |
| Operation | 10-inch HMI |
| Compressed air | min. 6 bar |
| Cooling water | 120 l/h |
| Connection | 400 V, 3 phases, 50 Hz / 220 V, 3 phases, 60 Hz |
