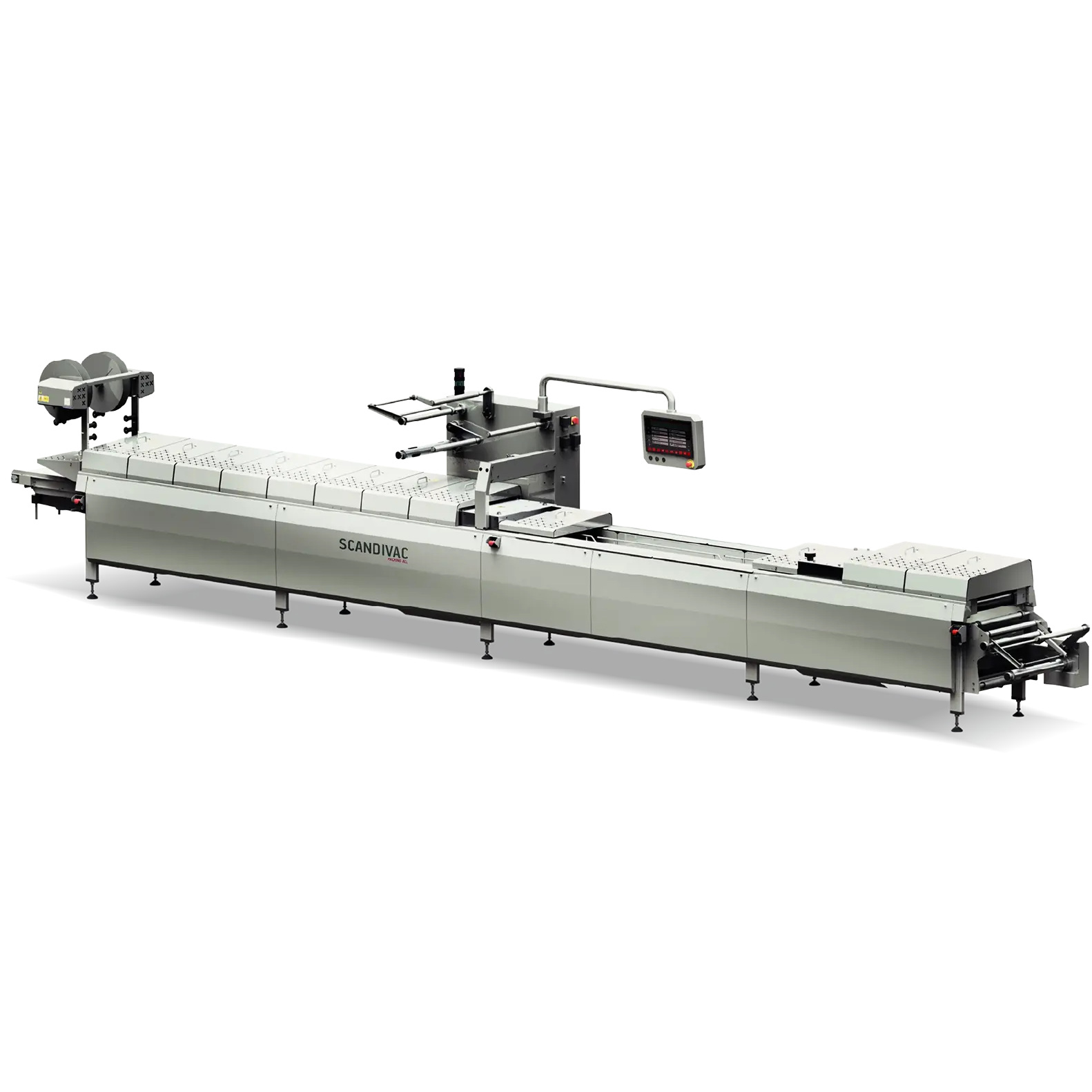

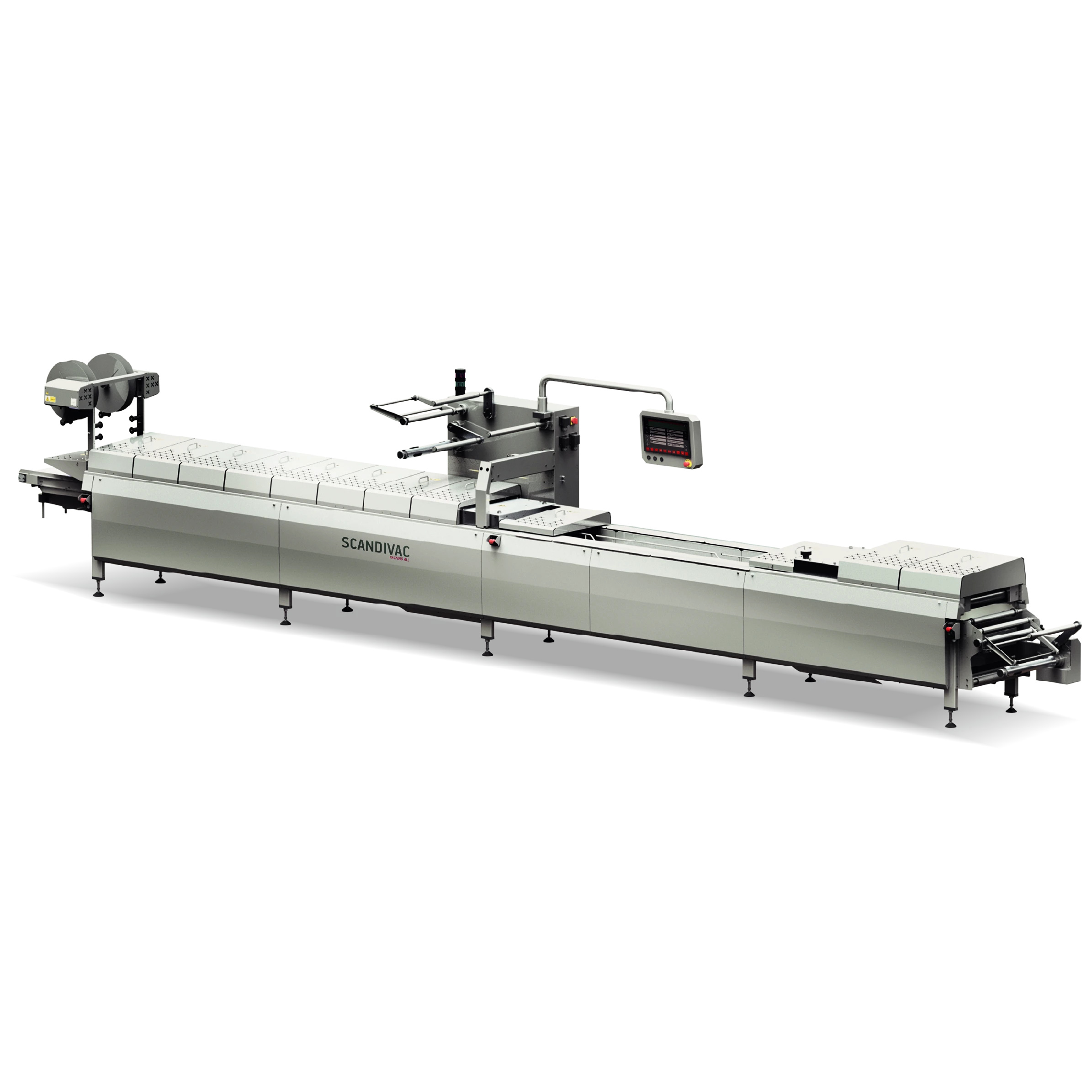

Scandivac SC240
Thermoforming machine for medium to large production facilities requiring speed, reproducibility, and integration with dosing, weighing, or slicing systems.
Suitable for professional packaging with sealing, vacuum, and MAP; available techniques and options depend on the chosen configuration. Please contact us for advice and a custom quote.
Description
| Capacity | up to 15 cycles/min. |
|---|---|
| Machine dimensions | 5,000–18,000 × max. 1,260 × 1,875 (±50) mm |
| Frame length | 4,300–15,000 mm |
| Film width | max. 600 mm |
| Stroke length | max. 500 mm |
| Forming depth | max. 150 mm |
| Operation | 15-inch HMI |
| Compressed air | min. 6 bar |
| Cooling water | depending on configuration |
| Connection | 400 V, 3 phases, 50 Hz / 220 V, 3 phases, 60 Hz |
