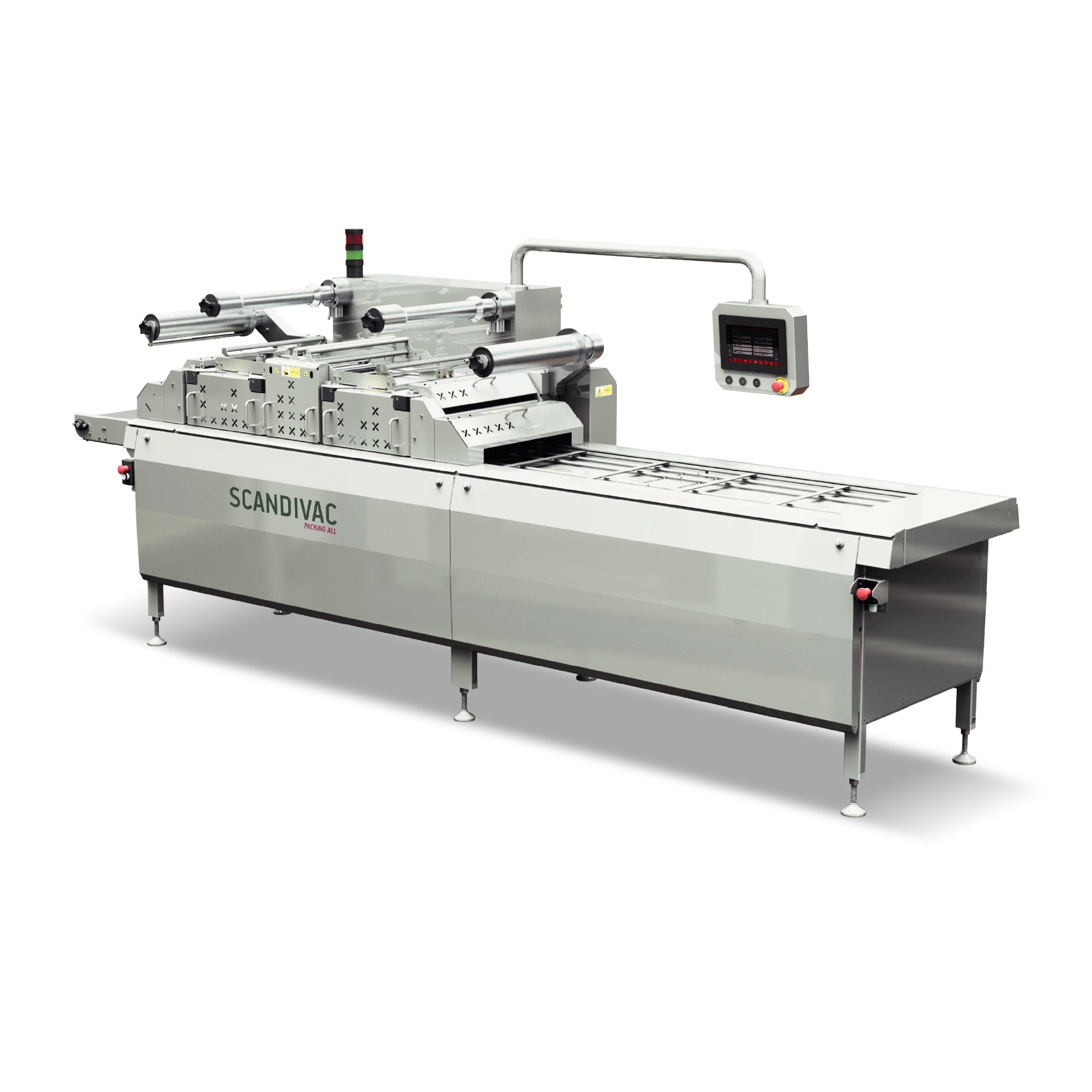

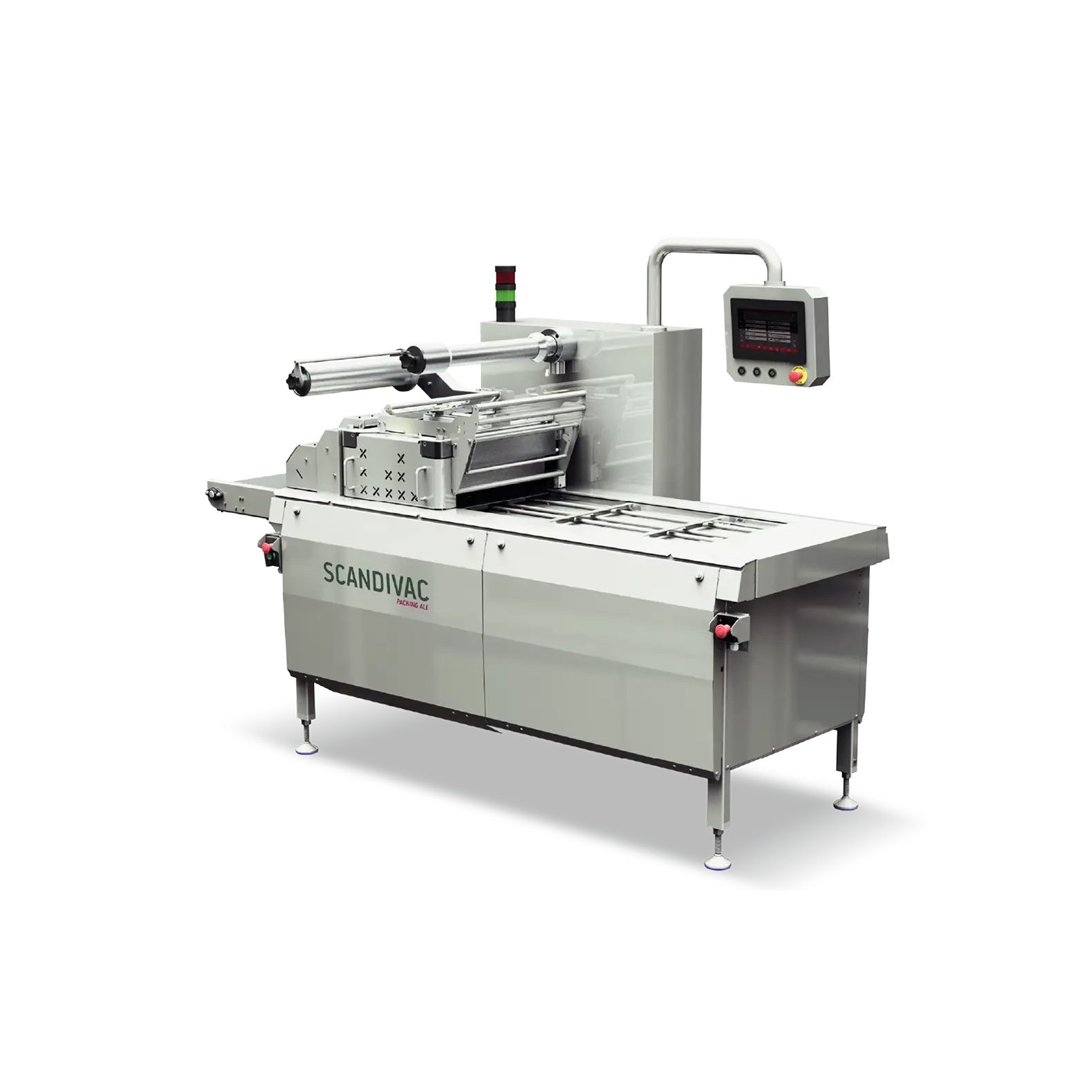

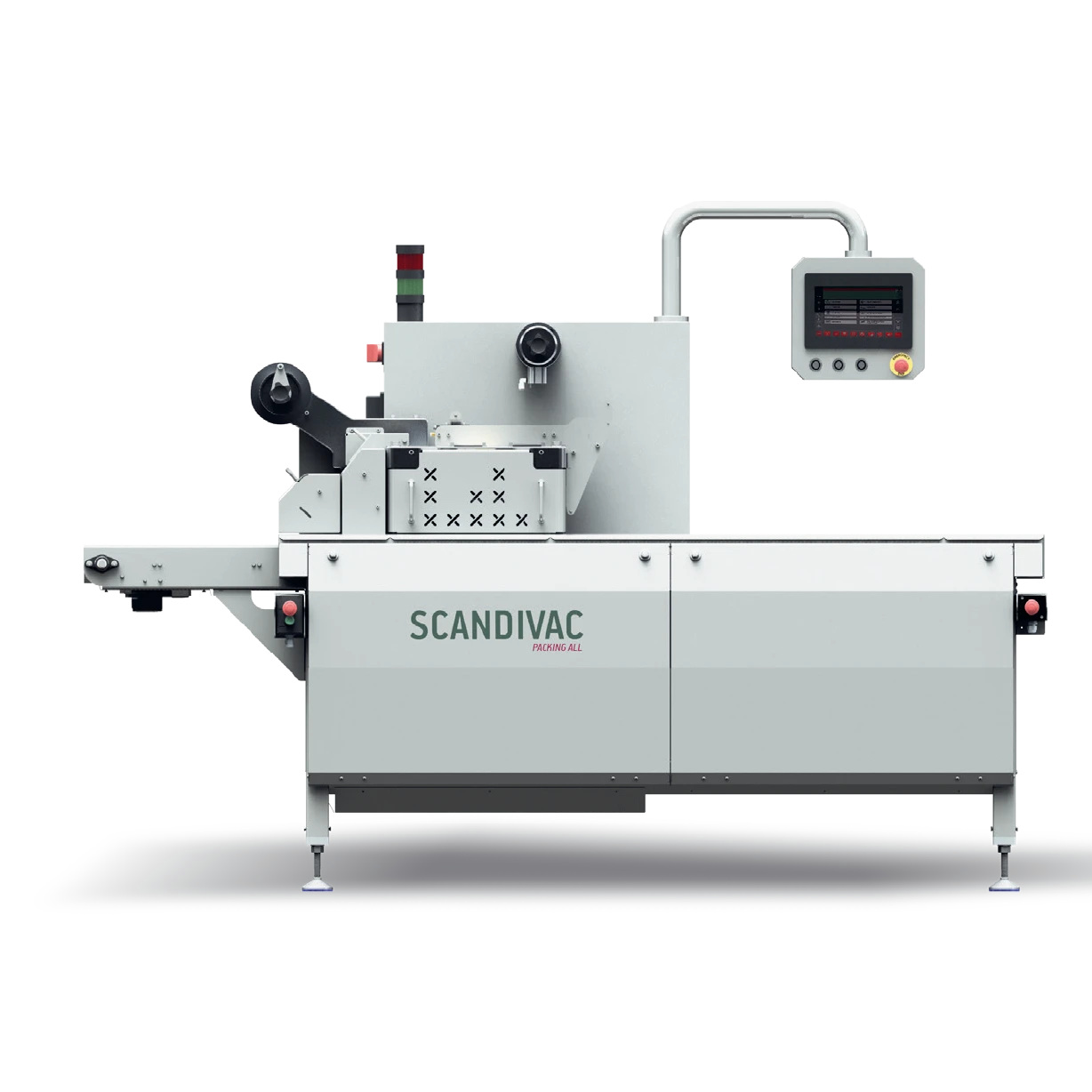

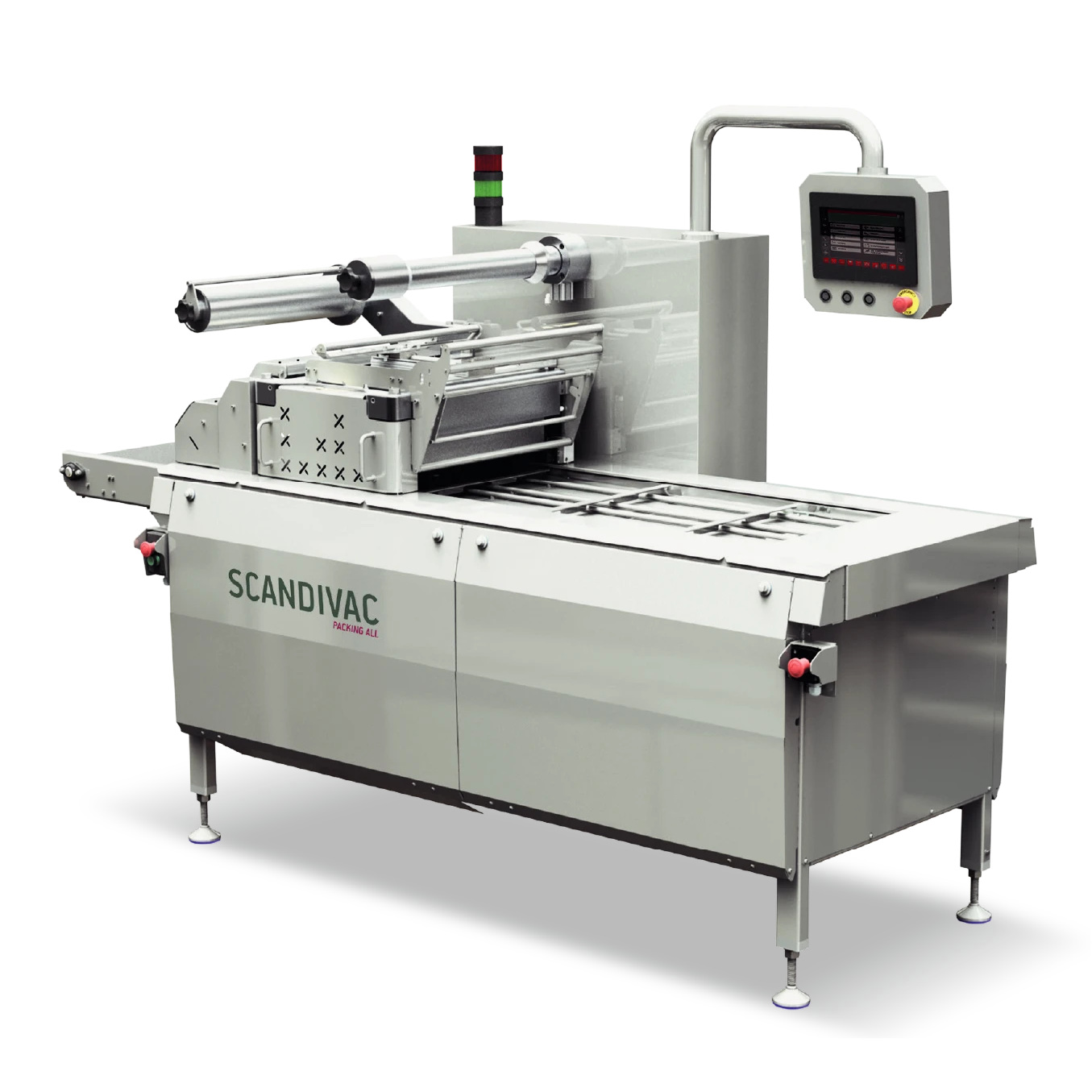

Scandivac SC200TA
Automatic tray sealer for medium to large production volumes. Available with one or two stations and configurable for one, two, or three lanes, depending on the tray size.
Suitable for professional packaging with sealing, vacuum, and MAP; available techniques and options depend on the chosen configuration. Please contact us for advice and a custom quote.
Description
| Capacity | 6–8 cycles/min. |
|---|---|
| Film width | max. 490 mm |
| Film roll diameter | max. 250 mm |
| Operation | 10-inch HMI |
| Machine dimensions | 2,055 × 1,122 × 1,790 mm; double 3,400 × 1,122 × 1,790 mm |
| Weight | 850 kg; double version 1,340 kg |
| Tray depth | max. 90 mm |
| SKIN depth | max. 30 mm |
| Compressed air | 6–7 bar |
| Protective gas | 2–6 bar |
| Power supply | 400 V, 3 phases, 50 Hz / 220 V, 3 phases, 60 Hz |
